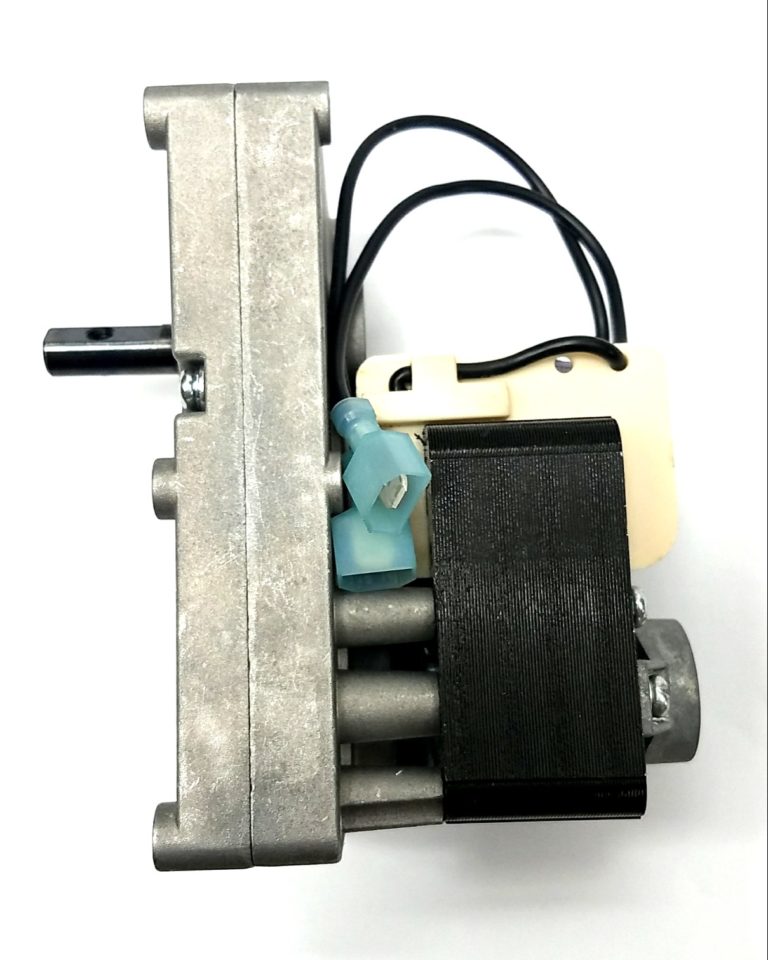

2 RPM Clockwise auger motor for Englander Multi-Fuel unit, Englander Pellet Utility Furnace and the Pellet Auxiliary Heater.
Secure SSL
Englander Auger Motor Replaces Part# CU-047042-AMP
$75.99
Category Wood Pellet Stove Parts
This item leaves our warehouse within 24-48 Hours.
2 RPM Clockwise auger motor for Englander Multi-Fuel unit, Englander Pellet Utility Furnace and the Pellet Auxiliary Heater.
This motor turns the auger that feeds the pellets into the burn pot. Fits stoves with EP, PUF, IP, and SS in the model number.
Formerly Part # AMP20128-GA
Replacement For Part Number: CU-047042
This motor turns the auger that feeds the pellets into the burn pot. Fits stoves with EP, PUF, IP, and SS in the model number.
Compatible Models
Compatible Models
- St. Croix Pellet Stoves & Inserts York Insert Englander Pellet Stoves & Inserts 25EP 55SHPEP 55TRPEP 25EPI 55SHPEPI 55TRPEPI 25PUF 55SHP240 55TRP240 25SSP01 55SHSSP01 55TRSSP01 25PAH 55SHPAH 55TRPAH 10-CDV 25-CB120, 55-SHPCB120, 55-TRPCB120 25PI 55SHP20 55TRP20 25PAF 55SHP25 55TRP25 25IP 55SHPIP 55TRPIP
- Summers Heat Pellet Stoves & Inserts 25EP 55SHPEP 55TRPEP 25EPI 55SHPEPI 55TRPEPI 25SSP01 55SHSSP01 55TRSSP01 25PAH 55SHPAH 55TRPAH 25PUF 55SHP240 55TRP240 25PI 55SHP20 55TRP20 25PAF 55SHP25 55TRP25 25IP 55SHPIP 55TRPIP
- TimberRidge Pellet Stoves & Inserts 25EP 55SHPEP 55TRPEP 25EPI 55SHPEPI 55TRPEPI 25SSP01 55SHSSP01 55TRSSP01 25PAH 55SHPAH 55TRPAH 25PUF 55SHP240 55TRP240 25PI 55SHP20 55TRP20 25PAF 55SHP25 55TRP25 25IP 55SHPIP 55TRPIP
-
Formerly Part # AMP20128-GAReplacement For Part Number: CU-047042
Weight | 4 lbs |
---|---|
Dimensions | 6 × 5 × 3.5 in |
Warranty
If you are not completely satisfied with your product you can return it for a 100% refund within 30 days of purchase. Read our full warranty details.
Tech Specs
RPM 2Direction CW
Volts 120
Amps .72
Shaft
Connector 2 Male Spades
*Units built from 2004 to present have a diagnostic test mode built into the circuit board. This can be used to test the individual electrical components of the unit.
WARNING: This mode can not be used to operate the stove! Attempting to burn this unit in this mode can cause damage to the unit.
Note: The stove should be completely empty of fuel and cold when using the diagnostic mode for testing the unit.
1) Unplug the stove. Locate the low burn air and air on temp buttons at the bottom of the touch pad. To start diagnostic, plug in the stove and then quickly push these buttons at the same time, then release. A number code will appear in the digital readout, this is the reading for the heat sensor. The blower speed number may change some while displayed. This is normal.
2) At this point press the low burn air button located at the bottom center of the touchpad. After pushing, a dash appears in the blower speed window.
3) Press the blower speed up arrow , and release, the exhaust blower will come on and you should see a circle in the blower speed and a dash then appears in the heat range.
4) Next, press the blower speed down arrow , this will turn on the room air blower and you will see in the display an 8 in the blower speed and the dash in the heat range
5) Press the heat range down arrow this will turn on the lower auger motor, you will see a circle in the heat range and an 8 in the blower speed.
6) Press the heat range up arrow next, this will start the auger motor, you will see an 8 in both displays at this time.
7) The low burn air button at the bottom center of the control board will turn on the auto igniter element, and the red light above the button will light up when pressed, look through the glass in the front door and watch for 2 to 3 minutes for the igniter to start to glow.
8) To turn off any of these components simply push again the same button that turned it on . To take the unit out of diagnostic mode, unplug the unit and plug it back in, this will reset the control board back into its "run mode".
Manufacturer
This part is an after market upgrade for your pellet stoves made by Direct Igniter. It fits and works exactly like the stock OEM version but will last longer, operate with less noise, and perform more efficiently than stock or cheaper replacements. We have over 25 years experience with pellet stoves and parts. All our products come with a no hassle 1 year warranty. We are a trusted USA company.
