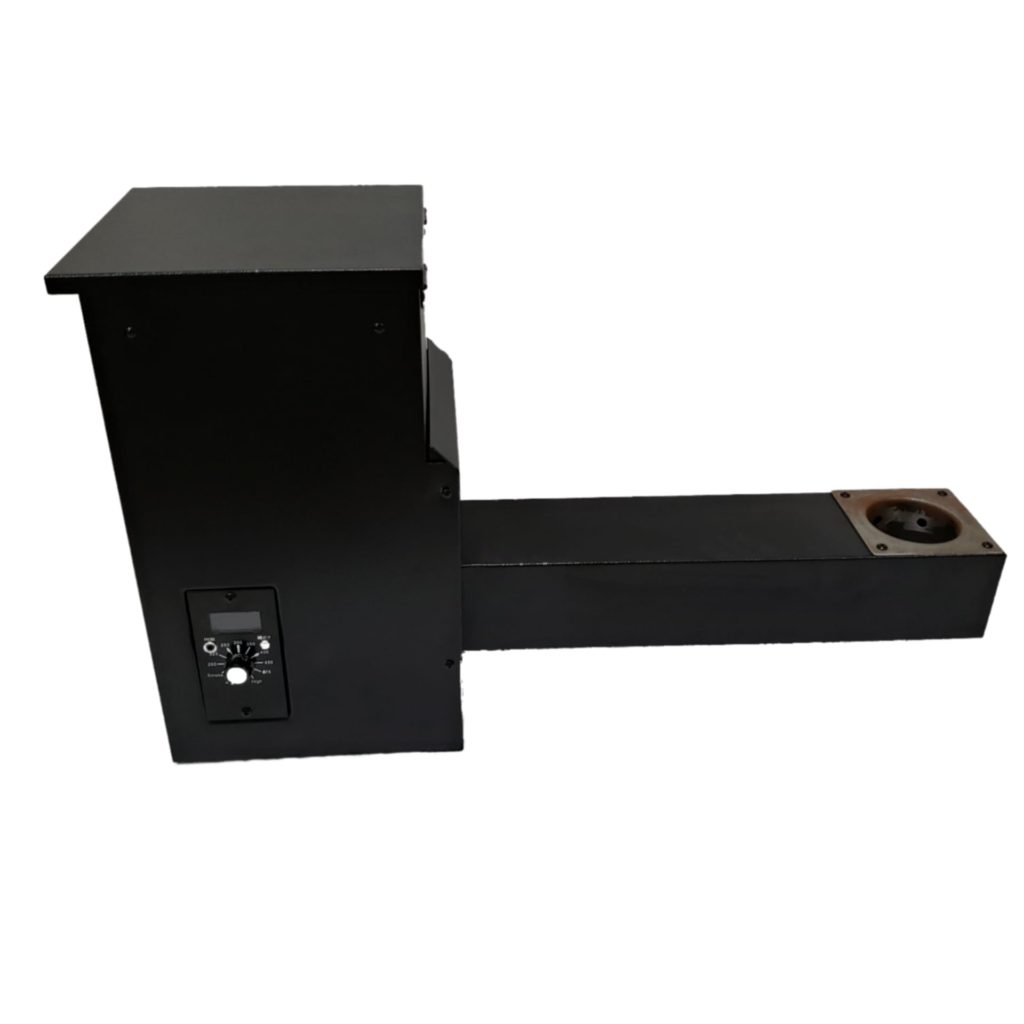

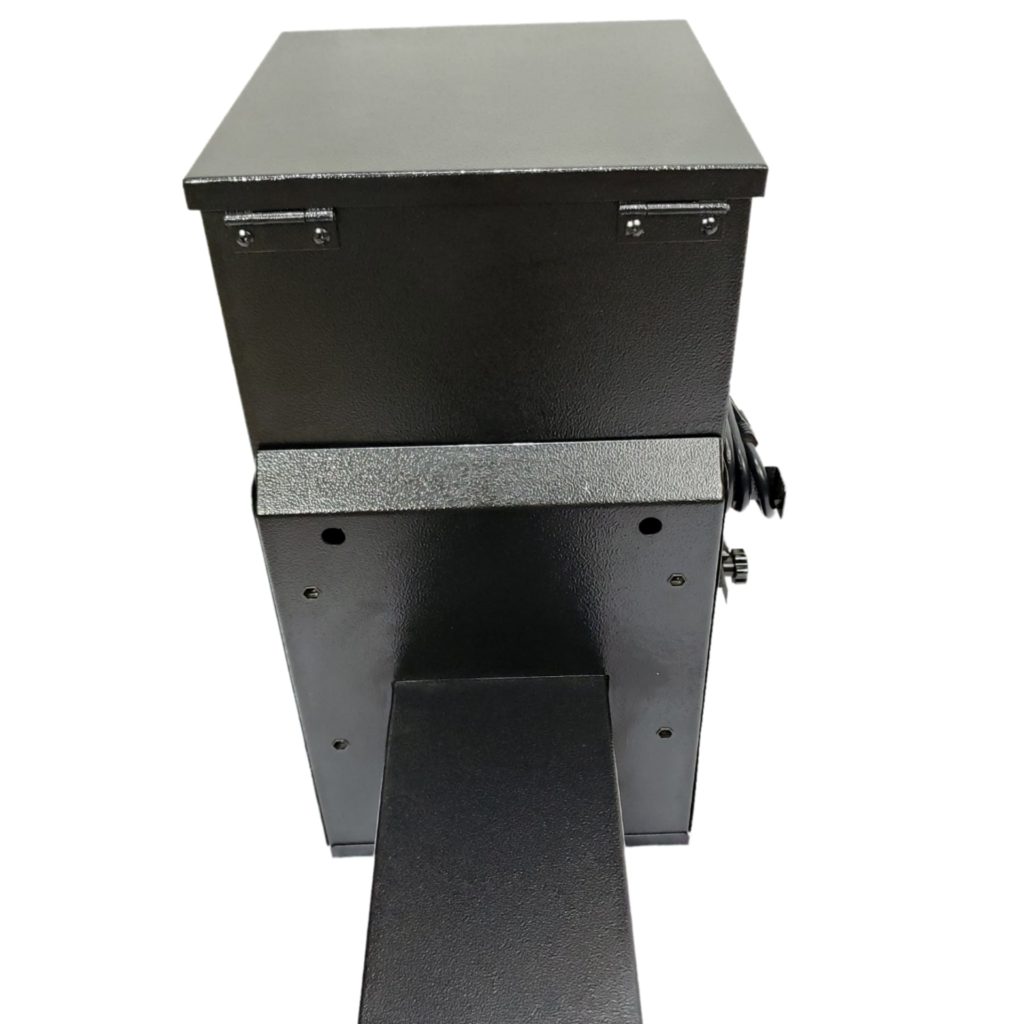

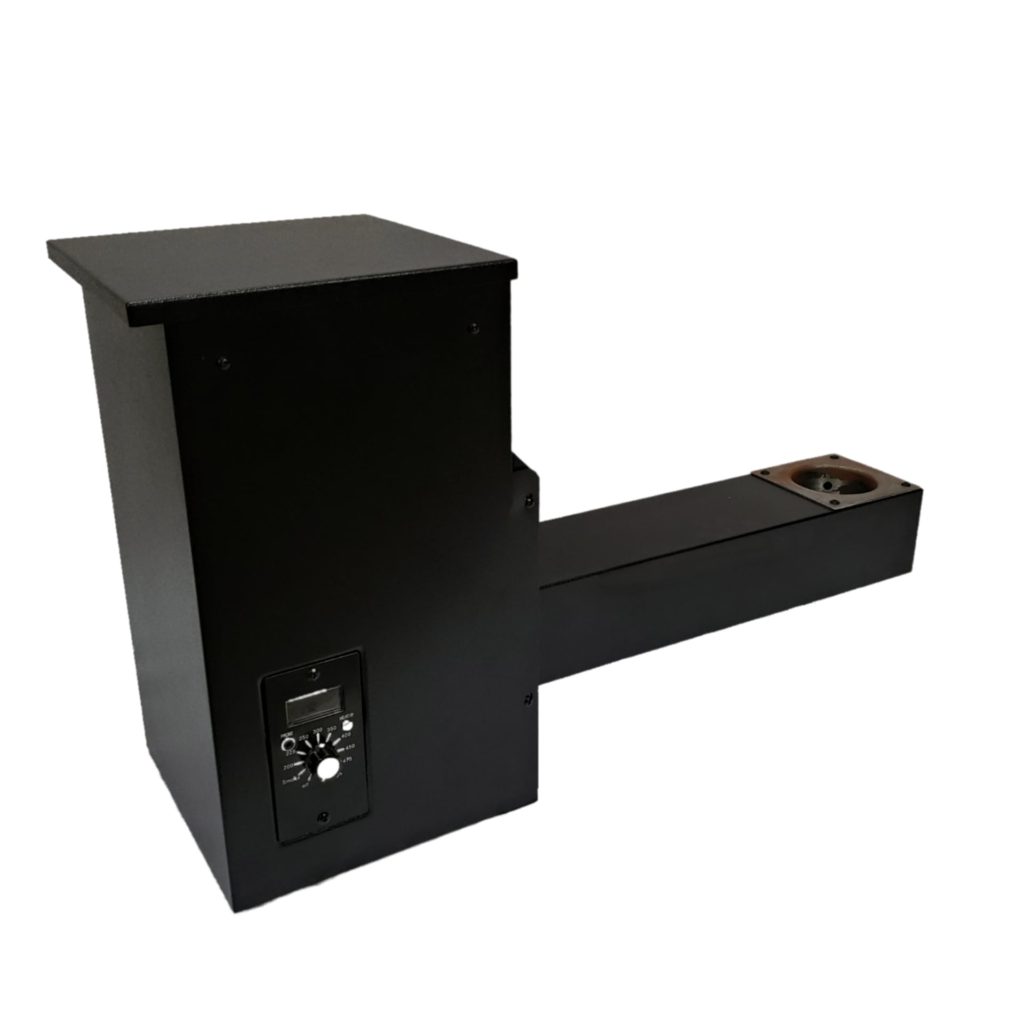

Pellet Grill Smoker Hopper Assembly Kit 12 & 18 Inch with Right & Left Side Mount
by Direct Igniter
This is designed for people to make their own pellet stove at home or to replace a broken pellet stove. This kit comes with ALL the electrical components needed to make a great pellet smoker. Just attach the pellet hopper to your desired smoker pit and build appropriate Heat Deflector and Drip Tray. This is the EASIEST and CHEAPEST way to build a CUSTOM pellet smoker assembly kit. These units also work with many of the common pellet stoves, such as Traeger, Pit Boss… an easy way to fix your broken pellet smoker. This product can be used as a pellet smoker conversion kit for a grill or BBQ.
What’s included:
- 1 Pellet Hopper Body
- 1 Digital Control Board with meat temp sensor
- 1 RTD Sensor Probe
- 1 Meat Sensor Probe
- 1 200W Igniter
- 1 Steel Burn Pot
- 1 2 RPM Auger Motor
- 1 Auger Shaft Rod
- 1 Combustion/Induction Fan
- Mounting template w/ bolts
- Mounting Gasket
Everything is fully assembled… just needs to be attached to your smoker pit and RTD properly placed and installed. *** RTD probe placement – RTD must be placed in close proximity to grill grate for accurate readings. RTD should not be located near or touching any direct flame or high heat***
You Must Have a Flame Guard and Drip Tray in Your Smoker for Proper Operation. These are NOT Included and Must Be Made Custom for Your Project. Please look at a commercial pellet stove brand internals before building your own pellet stove. This will help you with understanding how to design a proper flame guard and drip tray for the best results.

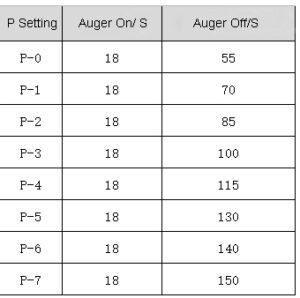

P Mode Chart:
Description:
Has auto start/ auto light
160-500 DEGREE RANGE
Includes SMOKE MODE with P Setting
P MODE Settings are 1-7

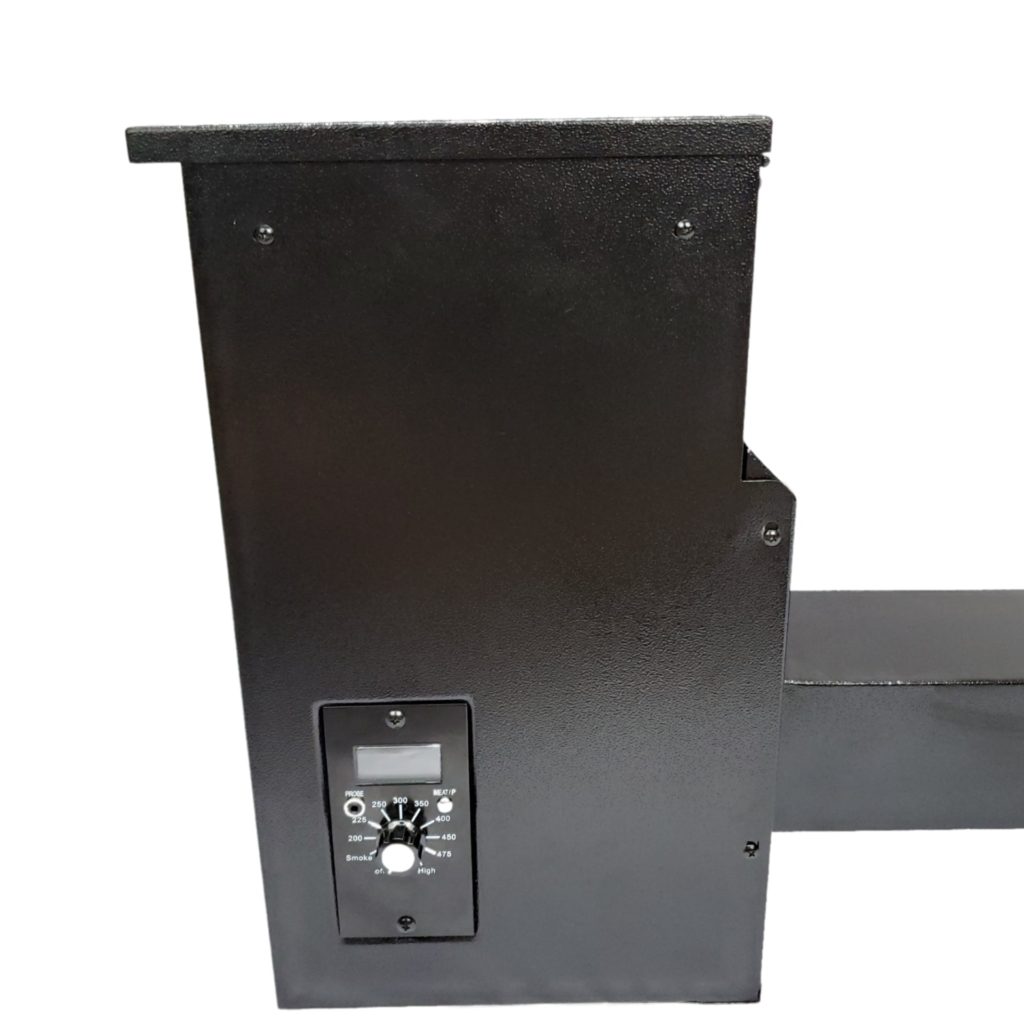

Digital Display
Displays ACTUAL TEMP & MEAT PROBE TEMP
Has Automatic Shut Down Feature “which runs the fan motor for 5 minutes after shut down to blow out fire and ashes”
Specifications:
Holds up to 20 Pounds of Pellets.
Black painted steel construction.
Has pellet dump on the back for easy switching of pellet flavors.
Includes Mounts for rolling up the power cord on the back.
Works on 110/120 volt.
Standard 4 Bolt Mounting Pattern Included with 1:1 Scaling of bolt pattern for easy installation.
Mounting Gasket Included, which helps seal where insert is placed into grill.
Mounting Bolts Included (M6* bolt size)
Also comes with Grommet Hinged Lid System Over the Pellet Hopper to cover pellets.
Use your grill at least 6 feet away from any wall or surface. Use your grill at least 6 feet away from combustible objects that can melt or catch fire such as vinyl or wood siding, fences, and overhangs or sources of ignition including pilot lights on water heaters and live electrical appliances. This appliance is designed for outdoor use only. Never use your grill in a building, garage, porch, shed, breezeway, or any other enclosed area. This product can cause property damage and harm to you or possibly death. Please use it with caution and discretion, as it could cause damage/injury if not handled with respect and care. This unit is a real fire and real barbecue, treat it accordingly. Direct Igniter is not liable for any damage, injury, or death caused by this product or its use. Please use at your own risk responsibly.
12″ Hopper-
Weight: 30 Pounds
Insert Dimensions (Size of hole needed to insert assembly): Height 4″ Width: Approximately 5.25″
Depth of Hopper Insertion into Desired Pit is Approximately: 12″ to the center of the fire pot.
18″ Hopper-
Weight: 31 Pounds
Dimensions of Hopper Assembly Kit: 31″ Long X 18.75″ Tall X 10″ Wide
Insert Dimensions (Size of hole needed to insert assembly): Height: 4″ Width: Approximately 5.25″
Depth of Hopper Insertion into Desired Pit is Approximately: 18″ to the center of the fire pot.
Returns:
We Accept All Returns Within 30 Days of Purchase.
Buyer Is Responsible for All Shipping Charges on Returns.***
We strive for 100% satisfaction. If you are not completely satisfied, let us know and we will make it right.
